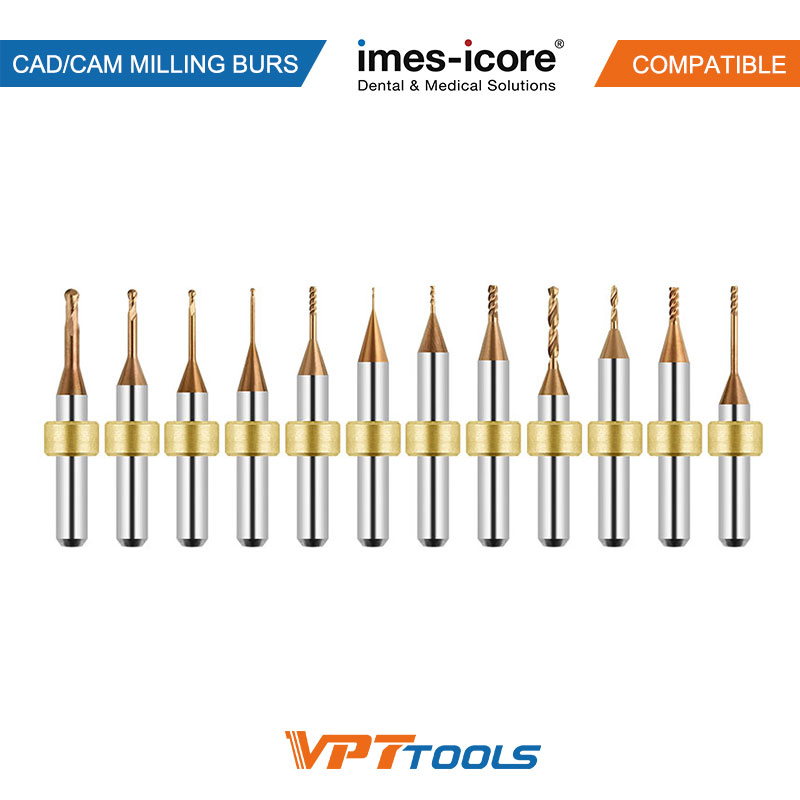

imes icore-350i/650i metal dental milling burs
Compatible with Imes icore dental milling machine model: CORiTEC 350i, CORiTEC 350i Loader, CORiTEC 350i PRO, CORiTEC 350i Loader PRO, CORiTEC 350i PRO+, CORiTEC 350i Loader PRO+, CORiTEC 650i, CORiTEC 650i Loader
Milling burs parameters:
| Effective length | 15mm | 12mm | 10mm | 10mm | 14mm | 3mm | 5mm | 7mm | 18mm | 13mm | 5mm | 14mm |
| Shank diameter | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm |
| Total length | 50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
| Flute diameter | Ø3.0 | Ø2.0 | Ø1.5 | Ø1.0 | Ø1.5 | Ø0.5 | Ø1.0 | Ø2.0 | Ø2.2 | Ø1.5 | Ø2.0 | Ø1.5 |
| Milling burs No. | T1 | T2 | T3 | T4 | T5 | T6 | T7 | T8 | T9 | T10 | T16 | T17 |
| Milling burs type | Ball end |
Ball end |
Ball end |
Ball end |
Flat end |
Flat end |
Flat end |
Flat end |
Drill |
Drill |
Ball nose |
Ball nose |
Compatible with Imes icore dental milling machine model: CORiTEC 350i, CORiTEC 350i Loader, CORiTEC 350i PRO, CORiTEC 350i Loader PRO, CORiTEC 350i PRO+, CORiTEC 350i Loader PRO+, CORiTEC 650i, CORiTEC 650i Loader
Milling burs parameters:
| Effective length | 15mm | 12mm | 10mm | 10mm | 14mm | 3mm | 5mm | 7mm | 18mm | 13mm | 5mm | 14mm |
| Shank diameter | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm | 6mm |
| Total length | 50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
50mm |
| Flute diameter | Ø3.0 | Ø2.0 | Ø1.5 | Ø1.0 | Ø1.5 | Ø0.5 | Ø1.0 | Ø2.0 | Ø2.2 | Ø1.5 | Ø2.0 | Ø1.5 |
| Milling burs No. | T1 | T2 | T3 | T4 | T5 | T6 | T7 | T8 | T9 | T10 | T16 | T17 |
| Milling burs type | Ball end |
Ball end |
Ball end |
Ball end |
Flat end |
Flat end |
Flat end |
Flat end |
Drill |
Drill |
Ball nose |
Ball nose |
